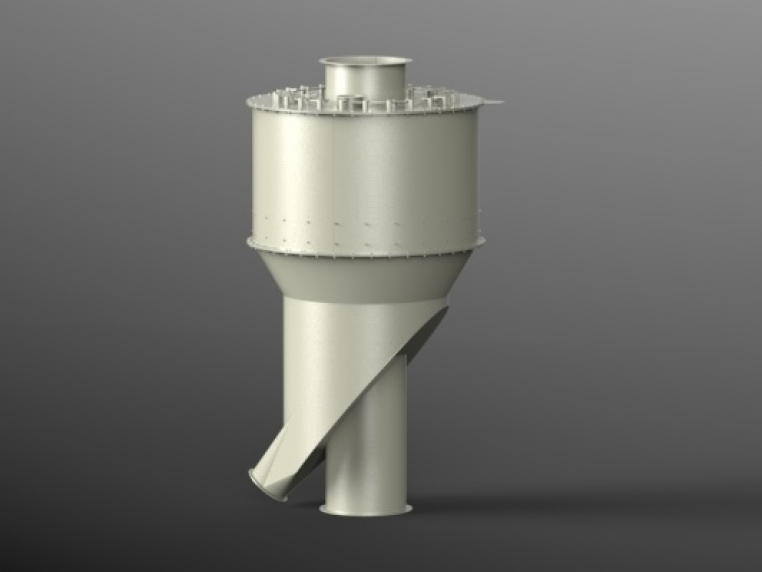

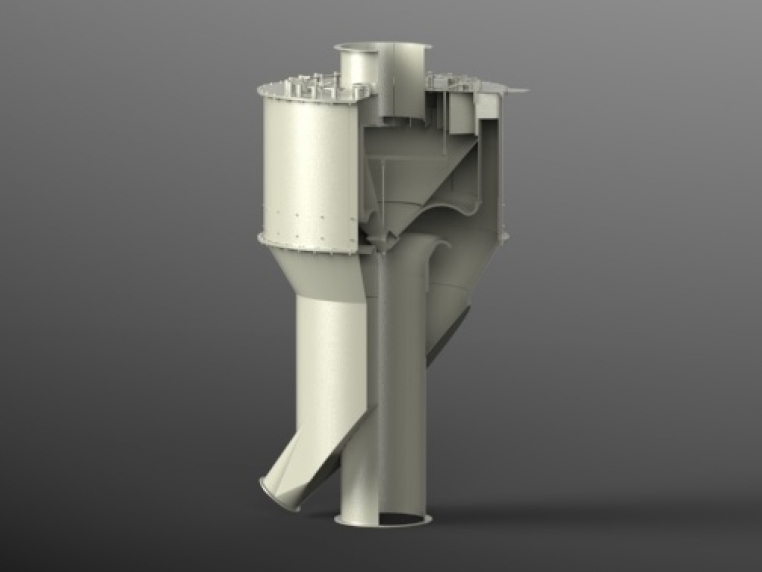

SEPARATORS
Static separators are used to divide the product into two separate granulometric fractions. The optimum grain size for effective separation is between 60-100µm of the finished product. Static separators are designed for the separation of ground materials such as sand, coal, limestone, and other mineral products.
Static separators are intended for work in the processing lines with the use of the mills.
Advantages:
- customer-friendly design
- infinitely variable adjustment of the product’s size
- high standards of uptime
- maintenance-free design
- high wear resistance of fast-wearing parts
- easy access provided for inspection and maintenance
Technical data
| Static separator | Diameter [mm] | Height [mm] | Input diameter [mm] | (average) input speed [m/s] | Capacity [m3/h] |
|---|---|---|---|---|---|
| GSS-1000 | ø1000 | 2000 | 400 | 13,2 | 6000 |
| GSS-1400 | ø1400 | 3000 | 500 | 14 | 12000 |
| GSS-1800 | ø1800 | 3500 | 650 | 14,4 | 20000 |
| GSS-2000 | ø2000 | 4400 | 800 | 14,8 | 25000 |
