Skid mounted impact crushers

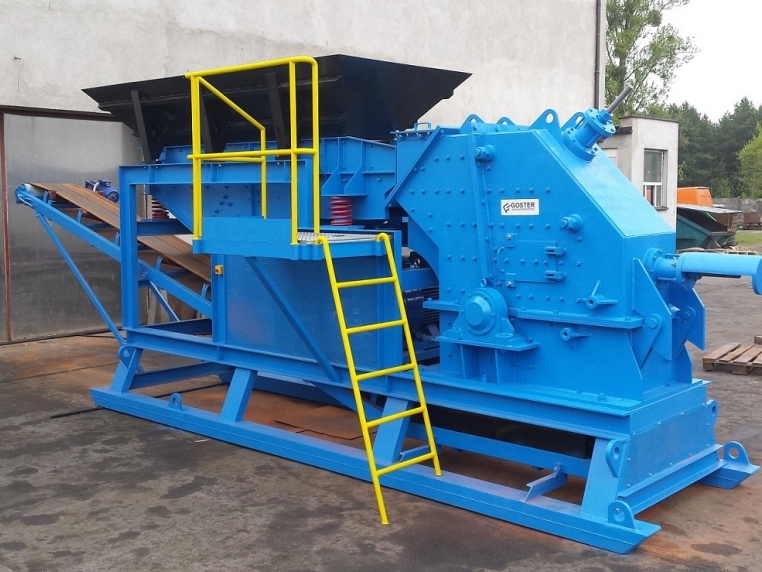

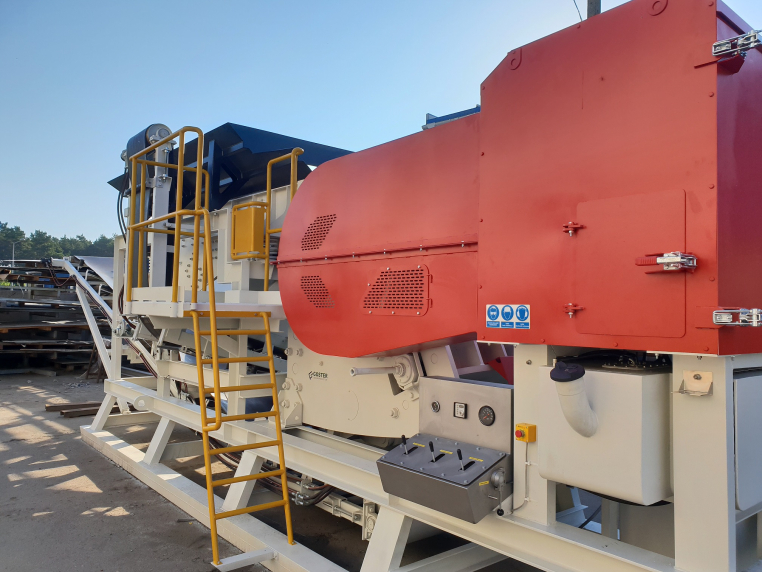

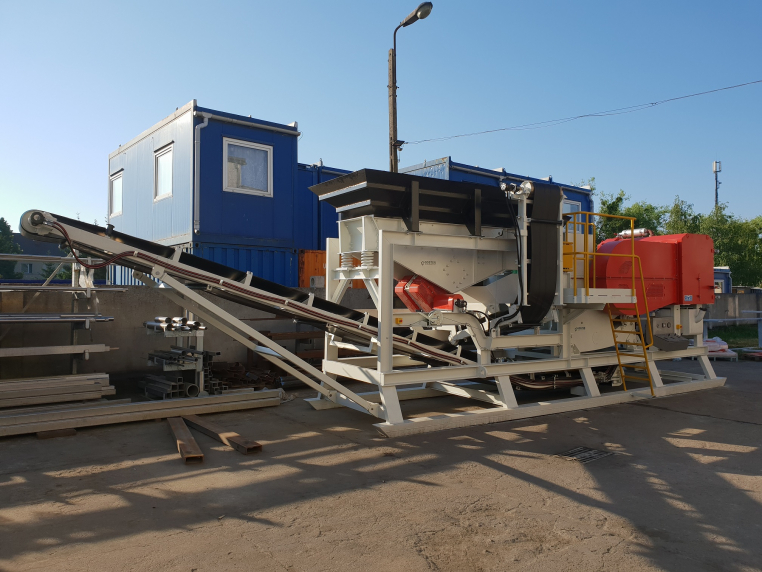

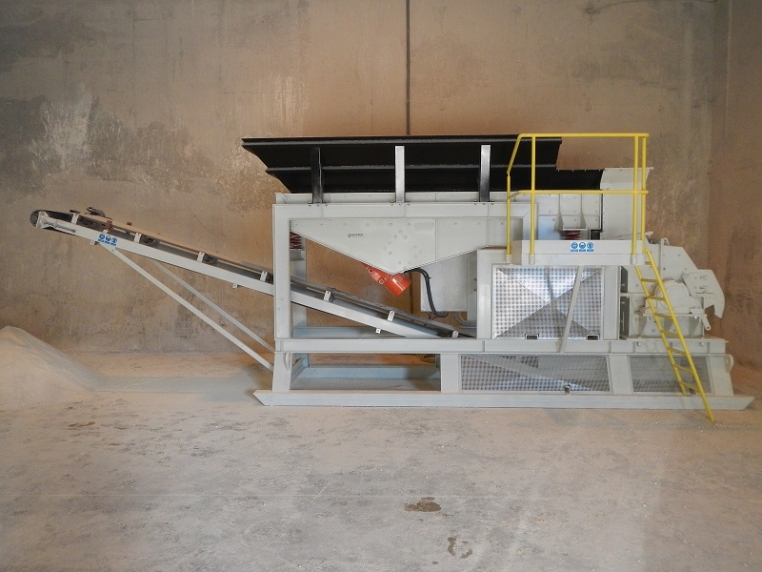

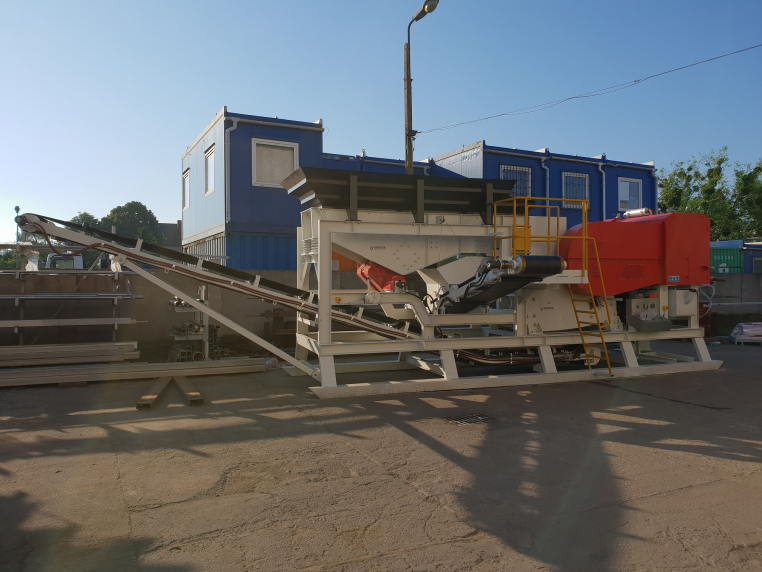

Skid mounted impact crushers GIF with a counter blow bars are used for crushing medium-hard materials such as limestone, coal, glass, sandstone, clinker, brick, and concrete rabble. GIF sets provide the ability to crush asphalt at temperatures ranging above 30 degrees Celsius ( 86 degrees Fahrenheit). They are also suitable for recycling building materials.
Product catalog
Download
Mobile shipping container impact crushers GJF
Mobile shipping container impact crushers GJF with a toggle jaw are used for crushing hard and medium hard materials such as: granite, field stone, quartz, basalt, limestone, etc. They are also suitable for recycling building materials.

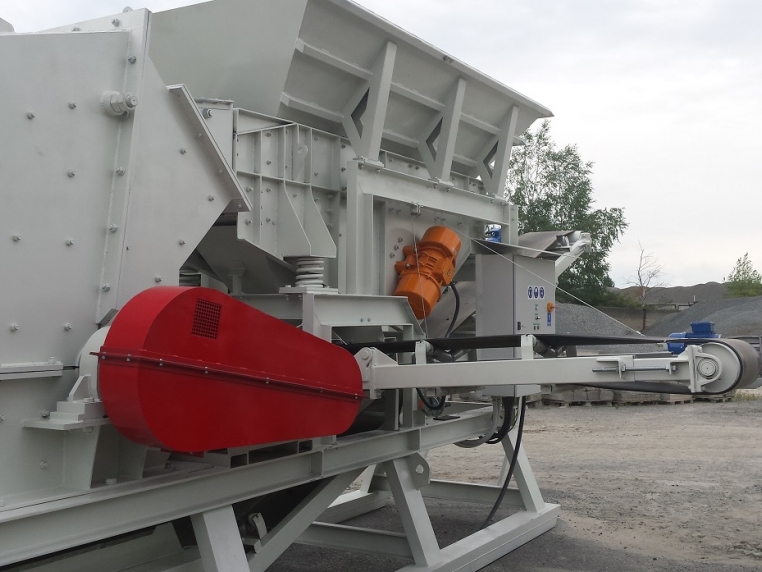

Drive and Operating
There is an option to apply either the electric or combustion operated motor. The set is equipped in a system overload controller, which turns the feeder off in case of the crusher’s overload.

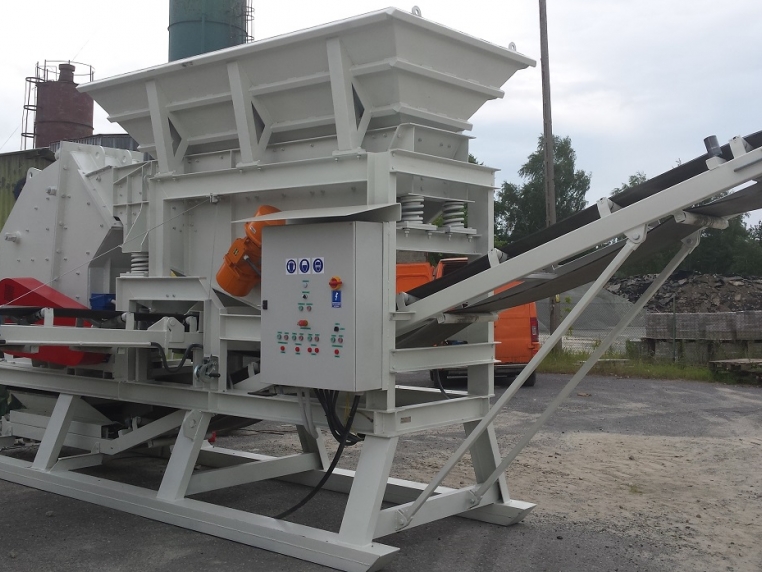

PG vibrating dispenser
In these sets we have used vibrating feeders, that pre-screen the finer material sifting through one or two screens depending on the customer’s needs and the capacity of the whole set-up.
Disassembly
Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assemble and disassemble.
Magnetic Separator
The magnetic separator was used in order to eliminate the metallic inclusions.
GIF Technical data for the crusher with the counter blow
| Crusher | Rotor motor’s dimensions [mm] | Product’s size [mm] | Capacity [t/h] (operational value) | Power [kW] | Weight of the whole set [kg] |
|---|---|---|---|---|---|
| GIF-6 | ø600x400 | 0-30 | up to 20 | 25 | 3000 |
| GIF-8 | ø800x600 | 0-50 | up to 80 | 55 | 8000 |
| GIF-10 | ø1000x800 | 0-80 | up to 150 | 90 | 11000 |
| GIF-11 | ø1000x1000 | 0-100 | up to 220 | 110 | 14000 |
Technical data of the GJF toggle jaw crusher
| Crusher | Input diameter [mm] | Gap [mm] | Capacity [t/h] (operational value) | Power [kW] | Weight of the whole set [kg] |
|---|---|---|---|---|---|
| GJF-3 | 300x200 | 6-30 | up to 20 | 18 | 2200 |
| GJF-6 | 600x300 | 20-70 | up to 80 | 36 | 5000 |
| GJF-7 | 700x400 | 40-110 | up to 140 | 60 | 12000 |
| GJF-8 | 800x500 | 50-125 | up to 200 | 80 | 17000 |
| GJF-9 | 900x600 | 75-150 | up to 300 | 90 | 18500 |
