TUBE MILLS
GM-... R Tube Rod Mills are designed for milling screening sands with a grain size of approx. 8mm and grinding them into fractions of the size of approx. 0.5mm This product is used as a filler in bituminous mixtures.
Tube Ball Mills GM- ... B are designed for grinding or blending mineral resources such as limestone and sand mixture, phosphates, etc. The maximum feed size is about 15mm for grinding mills and about 3mm for beating mills; grain size of the resulting product ranges from 0.09mm to 0.06mm.
Product catalog
Download
Capacity

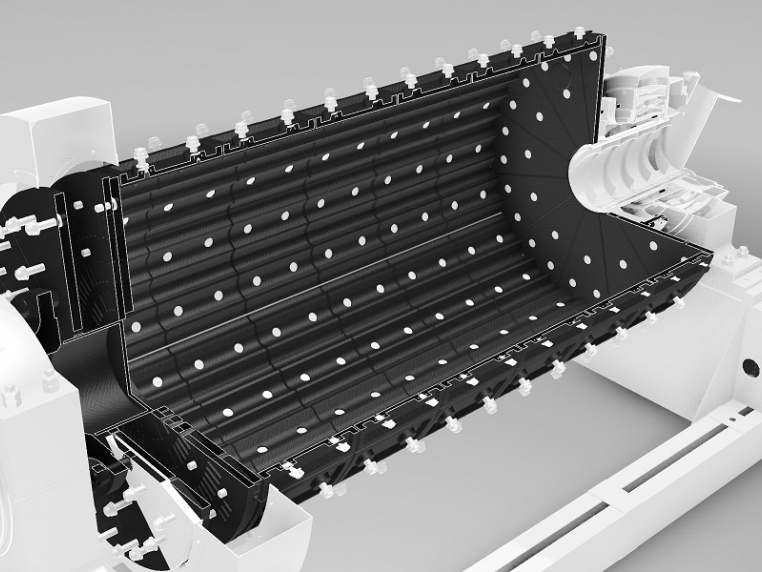

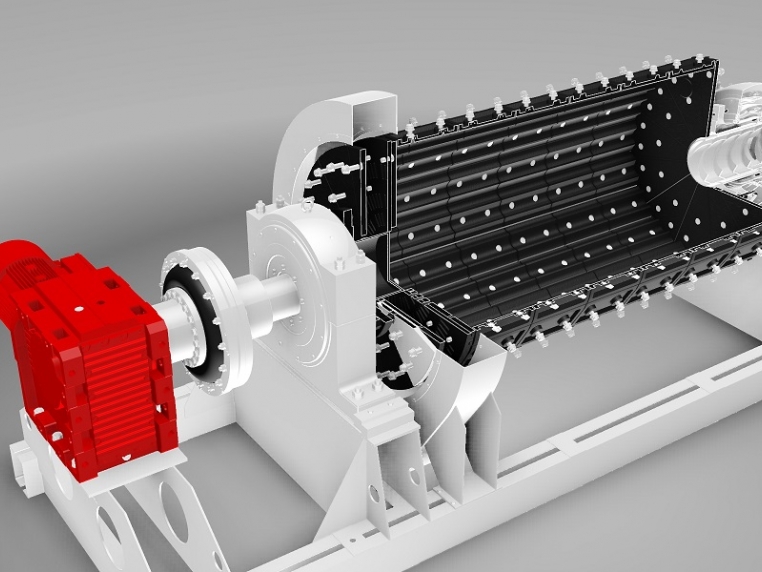

An optimal ratio of the drum rotating speed to its diameter, properly shaped liners, an option to choose liners and grinding mediums with variety of shapes and materials have largely improved the performance of GM machines.
Disassembly
Thanks to many years of experience in machine construction and repair we were able to design the tube mills for a customer-friendly assembly and disassembly.
Compact design

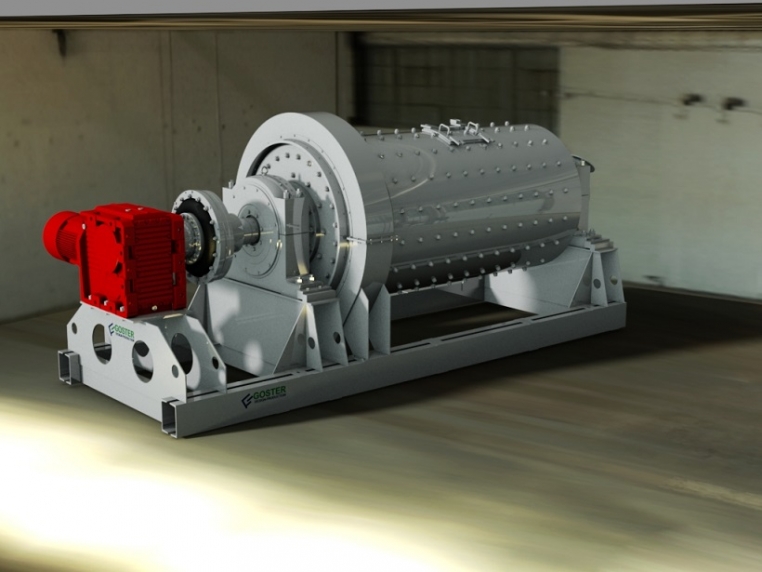

Due to placing the mill and the drive on a common frame, one can easily change the mill’s preferred site of use at once, while at the same time diminishing the costs of both transportation and re-installation.
Rod or Ball Mill
On our customer’s request we can easily retool the mill from Rod to Ball.
Technical data
| Mill | Mill’s type | Diameter [mm] | Length [mm] | Capacity [t/h] | Power [kW] | Weight without the grinding mediums [kg] |
|---|---|---|---|---|---|---|
| GM-1735R | rod | ø1700 | 3500 | up to 20 | 90 , 110 | 25 000 |
| GM-1735B | ball | ø1700; | 3500 | up to 12 | 90 , 110 | 28 000 |
| GM-1745R | rod | ø1700; | 4500 | up to 25 | 132 , 160 | 30 000 |
| GM-1745B | ball | ø1700 | 4500 | up to 15 | 132 , 160 | 33 000 |
