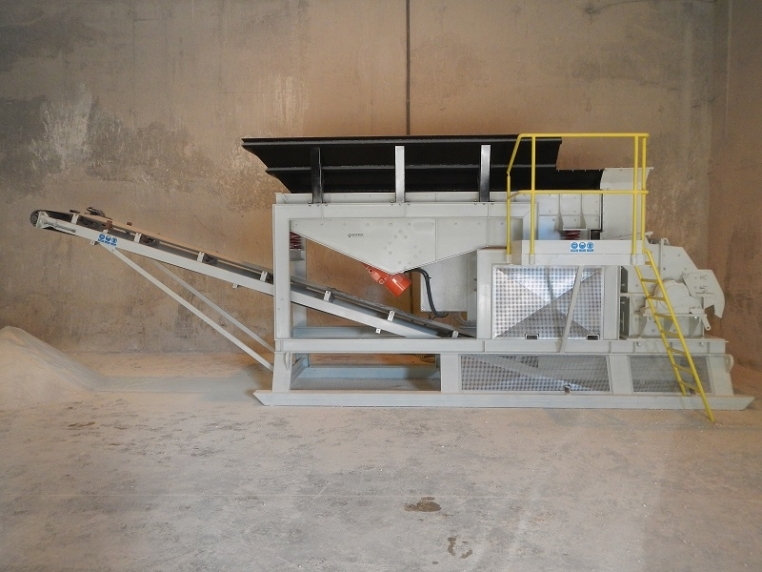

GHFR and GJFR series Machines for recycling tile, stone cladding, elevation stone tile
GHFR and GJFR series Machines for recycling tile, stone cladding, elevation stone tile - made for crushing medium hard materials.
Product catalog
Download
Drive and Operating
There is an option to apply either the electric or combustion operated motor. The set is equipped in a system overload controller, which turns the feeder off in case of the crusher's overload.
PG vibrating dispenser
In our sets we have used vibrating screens which allow pre-screening of the finer materials. Pre-screening screens can be installed in one- or two- layer set-ups, depending on the customer's needs, at the same time increasing the efficacy of the whole set-up.
Disassembly
Thanks to many years of experience in machine construction and repair we were able to manufacture customer friendly assembly and disassembly designed crushers.
Magnetic separator (options)
Magnetic separator can be used for eliminating metallic inclusions.
Technical data of the GHFR Recycling machine equipped with hammer crushed
| Crusher | Rotor motor's dimensions [mm] | Product's size [mm] | Capacity [t/h] (operational value) | Power [kW] | Weight of the whole set [kg] |
|---|---|---|---|---|---|
| GHFR-4 | ø400x400 | 0-10 | up to 3 | 20 | 2400 |
| GHFR-7 | ø700x700 | 0-15 | up to 10 | 52 | 7000 |
| GHFR-10 | ø1000x1000 | 0-20 | up to 30 | 75 | 11000 |
Technical data of the GJFR Recycling machine equipped with toggle jaw crusher and cone crusher
| Crusher | Input diameter [mm] | Gap [mm] | Capacity [t/h] (operational value) | Power [kW] | Weight of the whole set [kg] |
|---|---|---|---|---|---|
| GJFR-3 | 300x200 | 3-20 | up to 10 | 18 | 2200 |
| GJFR-6 | 600x300 | 3-40 | up to 20 | 36 | 5000 |
| GJFR-7 | 700x400 | 6-50 | up to 40 | 60 | 15000 |
| GJFR-8 | 800x500 | 10-50 | up to 70 | 80 | 21000 |
