GS SERIES

GS crushers are used for crushing soft and medium-hard materials such as slag, limestone, marl, coal, gypsum, sulfur ore, chalk, salt, and fertilizers.

Product catalog

Download

Efficacy

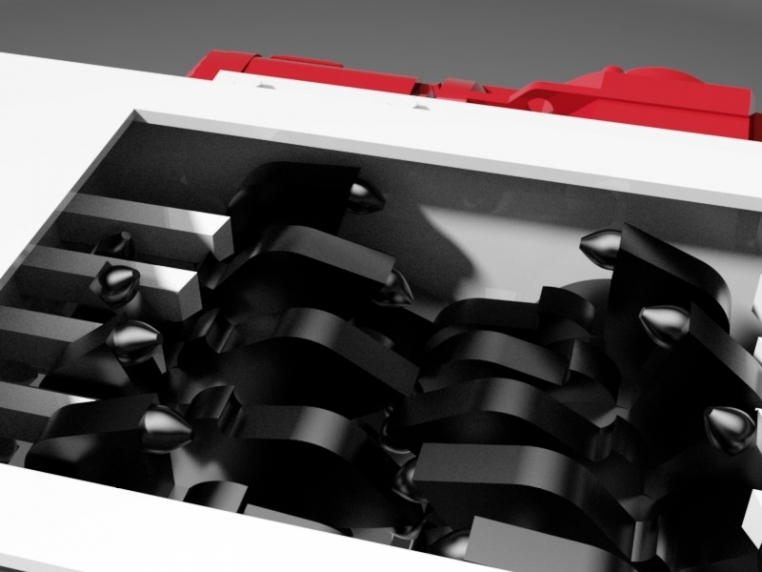

Owing to discs with appropriate teeth shape and of low speed it is possible to crush large feed with a small-sized crusher. A bottom breaker improves product quality and protects the conveyor belt from any direct impact.

Disassembly

Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assembly and disassembly.

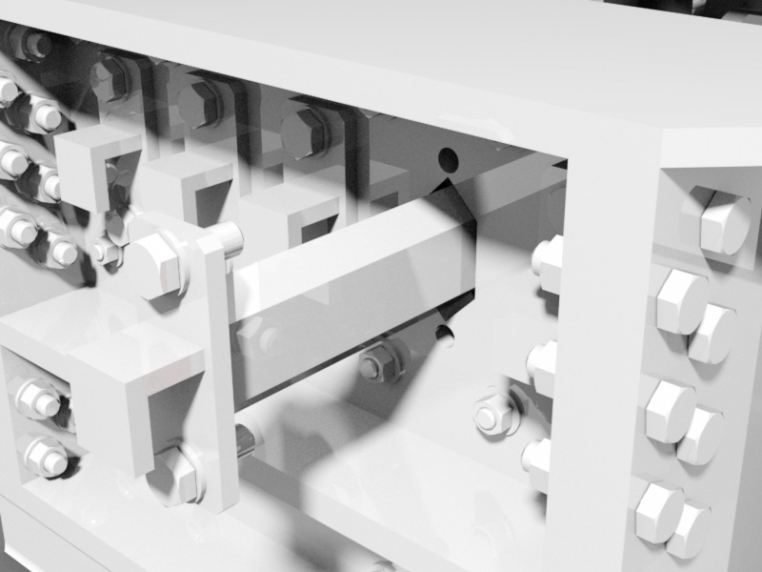

Overload protection

Thanks to two protection systems – mechanical and hydraulic or electrical – the crusher is protected against any overload and is able to detect the uncrushable materials. There is an option of using two gap-setting systems interchangeably: automatic-hydraulic system controlled by the machine’s console or a manual one.

Longer periods between repairs

The GS crushers use state-of-the-art construction materials, which prolong the parts’ lifetime cycle and reduce the machine’s weight. The over-sized bearings applied in our crushers allow for their longer failure-free operation while replaceable teeth significantly decrease the crusher’s operational costs.

Technical data

Crusher Rotor motor dimensions [mm] Gap [mm] Max feed [mm] Capacity [m3/h] Power [kW] Weight [kg]
GS-455 ø450x500 30-70 280 up to 30 2x5,5 2000
GS-458 ø450x800 30-70 280 up to 45 2x7,5 2500
GS-556 ø550x600 30-70 380 up to 50 2x7,5 2650
GS-5510 ø550x1000 30-70 380 up to 70 2x11 3500
