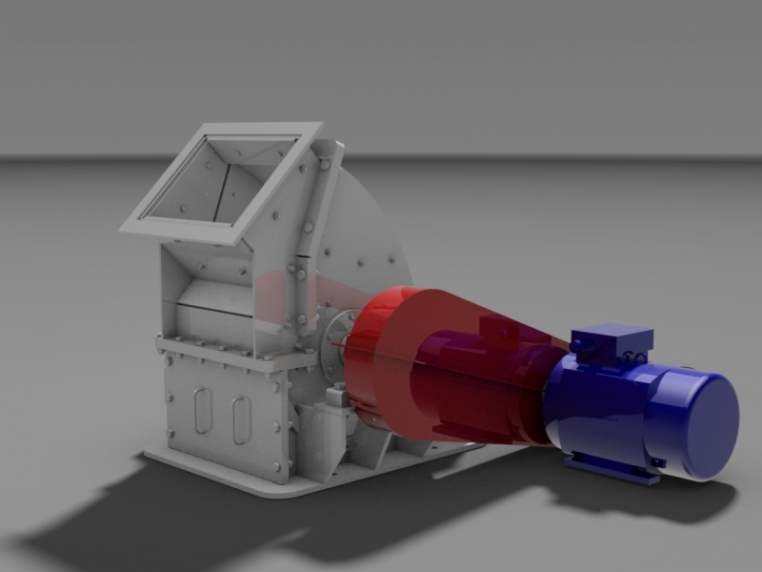

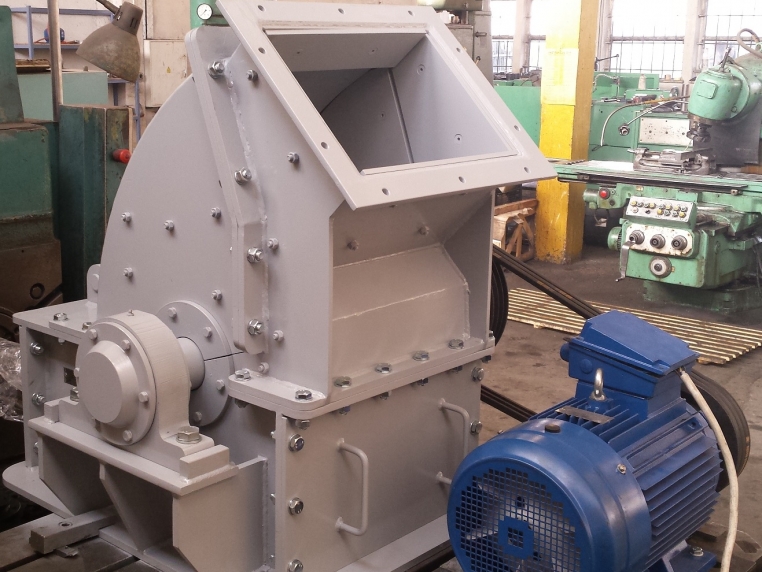

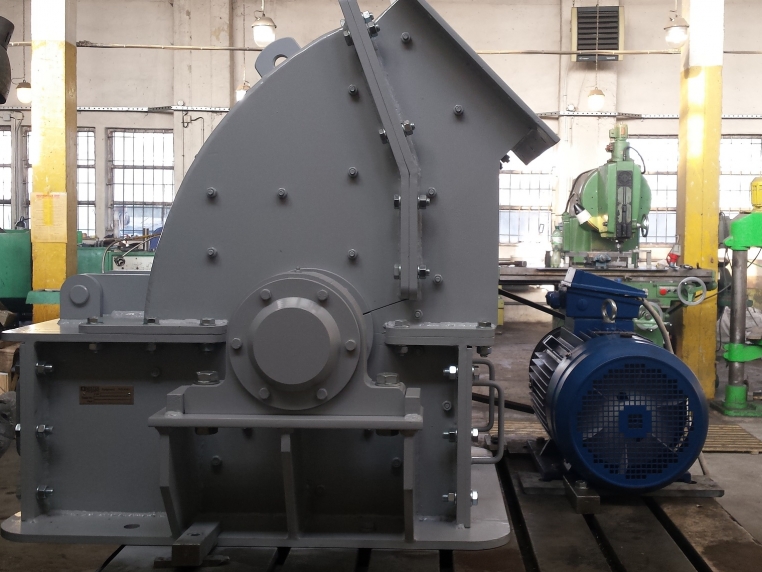

GH SERIES
GH crushers are used for crushing medium-hard materials such as limestone, coal, glass, sandstone, clinker, brick, and concrete rabble. They are also suitable for recycling building materials.
Product catalog
Download
Capacity
Our crushers support the following crushing systems: armor plates with pendulum, armor plates with grate (sieve). The correct ratio of the rotor diameter to its length, properly selected engine power, and different crushing systems improve the capacity and efficiency of the GH crushers.
Disassembly

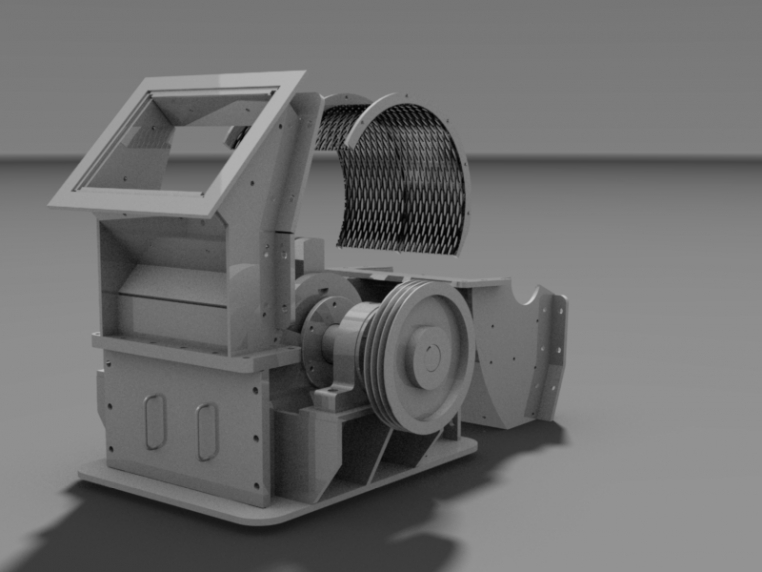

Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assembly and disassembly.
Longer periods between repairs

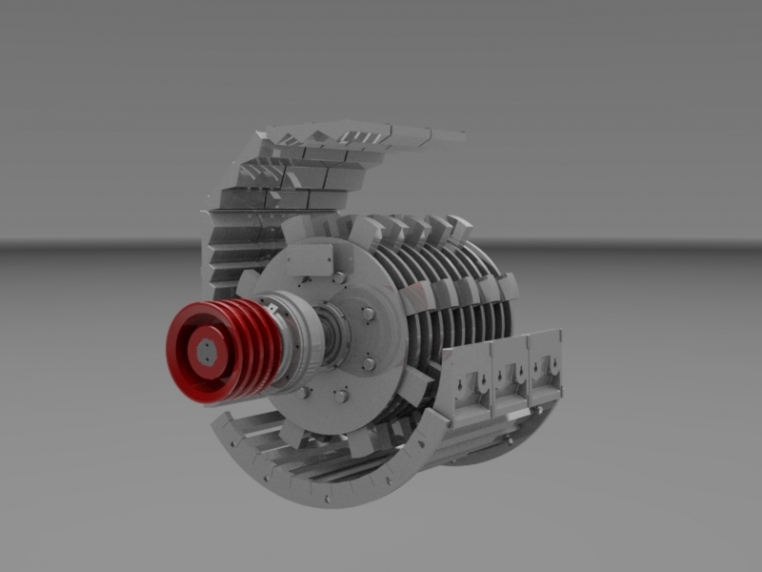

The GH crushers we have used state-of-the-art construction materials, which prolong the parts’ lifetime cycle and reduce the machine’s weight. The over-sized bearings applied in our crushers allow for their longer failure-free operation. Crusher’s spare parts are designed to be easily replaced with small lifting devices, which can be supplied as accessories for the crusher- Hammer
Technical data
| Crusher | Rotor motor dimensions [mm] | Product’s size [mm] | Capacity [m3/h] | Power [kW] | Weight [kg] |
|---|---|---|---|---|---|
| GH-44 | ø400x400 | 0-30 | up to 10 | 15 | 950 |
| GH-74 | ø700x400 | 0-50 | up to 15 | 22 | 2000 |
| GH-107 | ø1000x700 | 0-50 | up to 20 | 55 | 5000 |
| GH-1010 | ø1000x1000 | 0-80 | up to 50 | 75 | 6000 |
