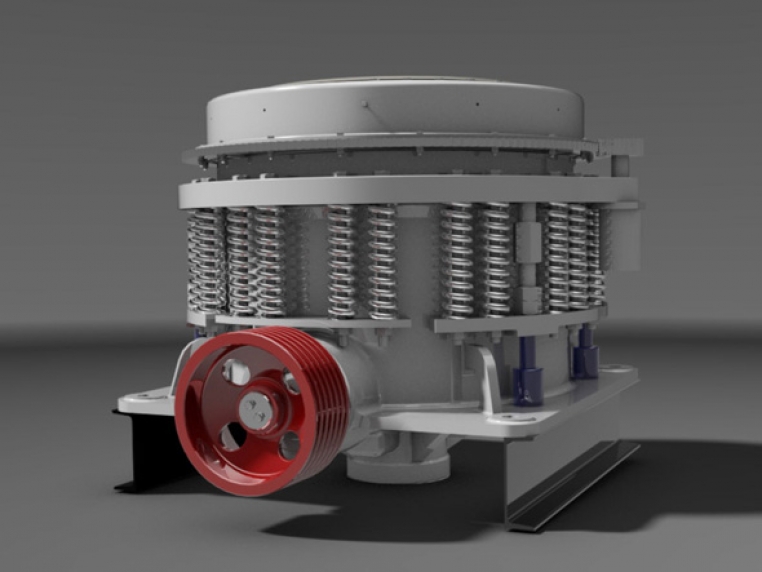

GC SERIES
GC crushers are used for crushing hard and medium-hard materials such as: granite, metal ores, quartz, limestone, sandstone, clinker, dolomite, basalt.
Product catalog
Download
Capacity:
Increased speed of the main bushing, enhanced engine power, modified cones’ shape: all of it significantly improves the performance and efficiency of our crushers.
Disassembly:

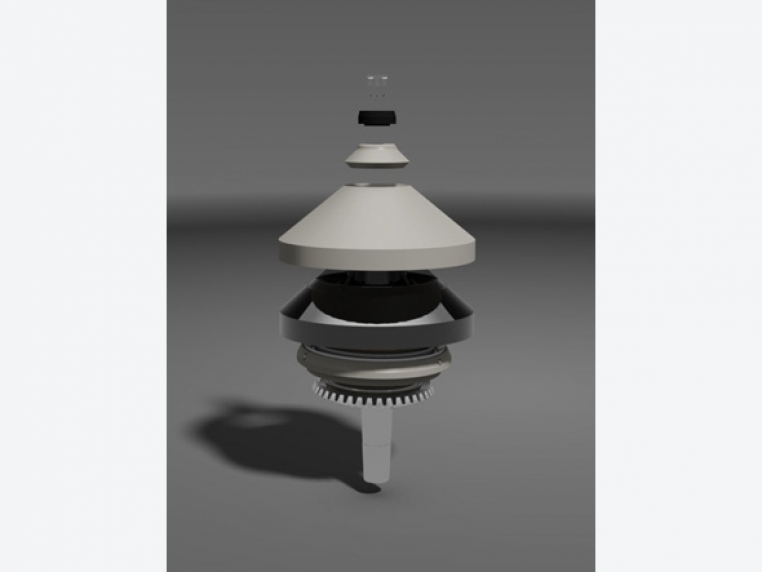

Thanks to many years of experience in machine construction and repair we were able to design crushers easier to assembly and disassembly.
Protection:

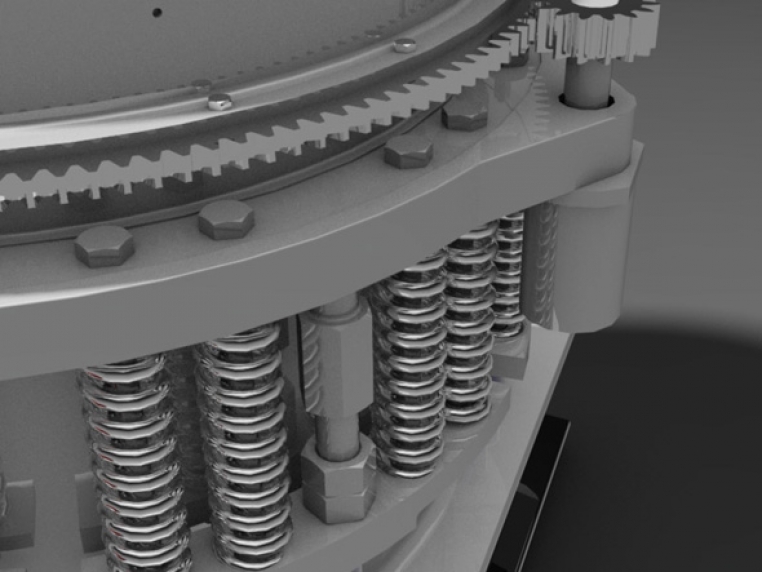

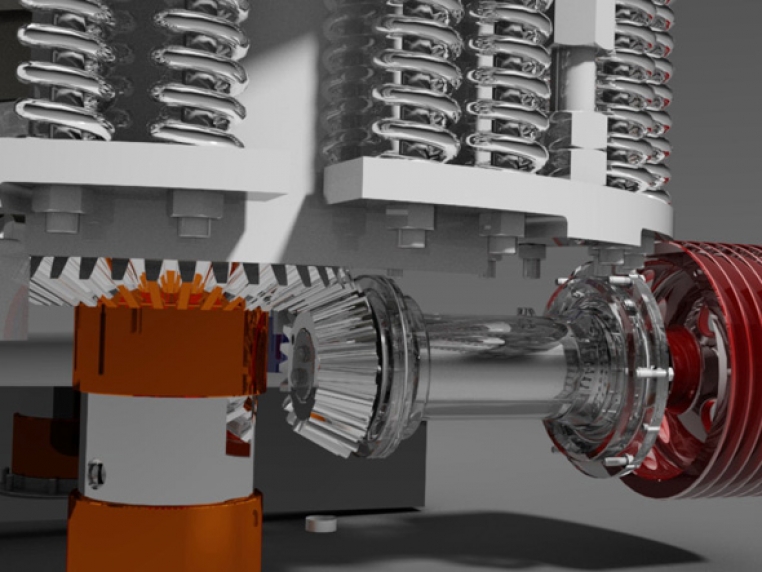

Overload protection and gap setting. Thanks to the gear system, the gap adjustment is safer and more precise. The GC crushers use uncrushable materials and triple overload protection system: mechanical (springs), hydraulic (cylinders), and electric.
Lifetime cycle:
Longer periods between repairs The GH crushers use state-of-the-art construction materials, which prolong the parts’ lifetime cycle and reduce the machine’s weight. Crusher’s spare parts are designed to be easily replaced with the use of small lifting devices.
Technical data
| Crusher | Inner cone diameter [mm] | Chamber’s type | Maximum input material’s dimensions | Gap [mm] | Capacity [m3/h] | Power [kW] | Weight [kg] |
|---|---|---|---|---|---|---|---|
| GC-600 | 600 | thick | 110 | 10-30 | do 30 | 55-75 | 5000 |
| medium | 60 | 7-25 | do 20 | ||||
| fine | 30 | 3-12 | do 10 | ||||
| GC-1000 | 100 | thick | 170 | 20-60 | do 60 | 75-90 | 9500 |
| medium | 110 | 10-40 | do 40 | ||||
| fine | 70 | 3-12 | do 20 |
