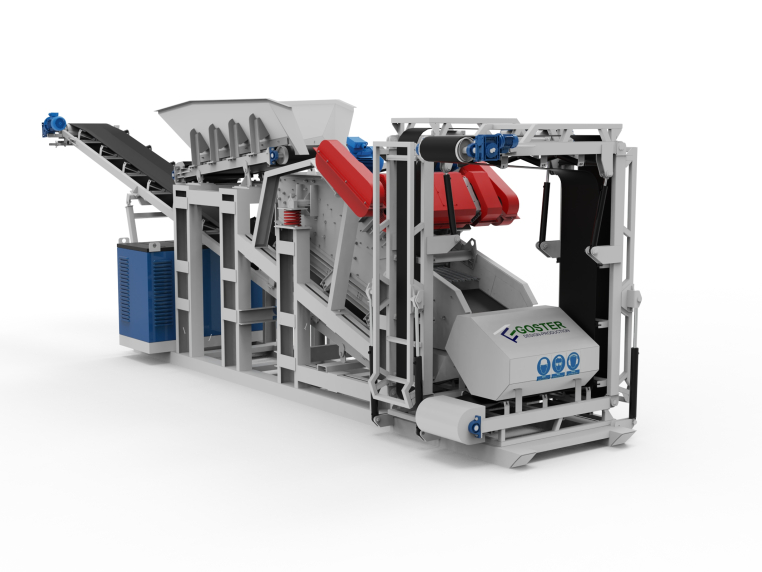

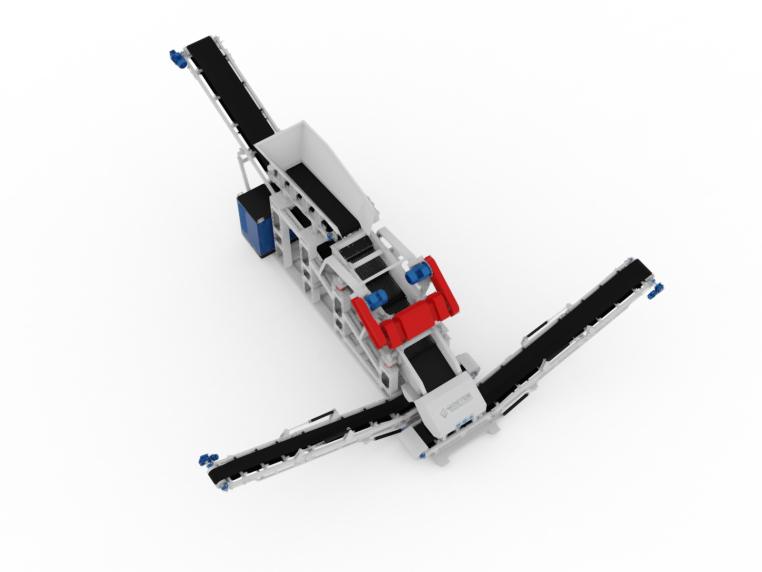

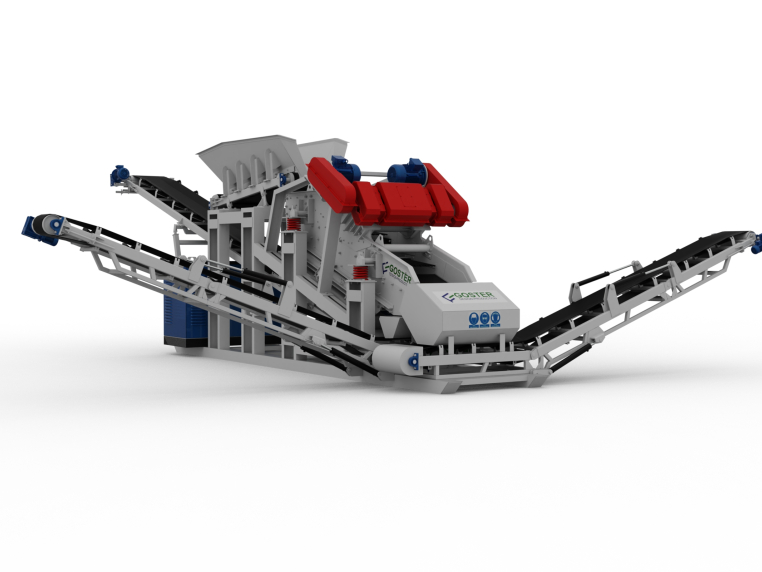

G3F Waste Separating Sets
They are used to recycle all kinds of municipal waste.
They are used to recycle all kinds of municipal waste.
The set is equipped with a modern, highly efficient, patented double-deck GFF screen with two segregation systems.
Upper deck grate system with SCR GOSTER technology (technology preventing material jamming and self-cleaning of grates)
The lower deck of the sieve with TPP GOSTER technology (double throw technology that allows for acceleration on the sieve up to 70g and self-cleaning of the sieves.)
The set is powered by a generator
The upper deck of the screen can be optionally equipped with air separation of light elements
The fine and medium fraction conveyors can be optionally equipped with magnetic drums for metal separation.
| Sets | Transport measurements L x W x H(m) | Screen deck measurements L x W [m] | Capacity [m3/h] (approximate values) | Power [kW] | Set weight [kg] |
|---|---|---|---|---|---|
| G3F-1 | 11,0x2,3x3,3 | 3,0x0,8 | do 35 | 30 | 9000 |
| G3F-2 | 12,0x2,8x3,3 | 3,0x1,2 | do 50 | 45 | 14000 |
